3.4.2. Hierarchy

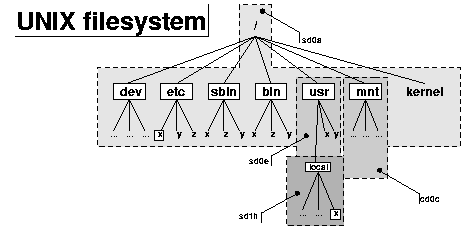

UNIX filesystem layout

The filesystem tree has only one root: /. There are no multiple top-level roots like on DOS/Windows (C:, D:, ...).

Additional partitions, removal mediums (CD-ROMs), network filesystems are mounted on top of an existing directory (see figure).

Depending on the type of mount, the content of the directory below is visible or not.
